Pro Cable System Conversion Kit

FG icon

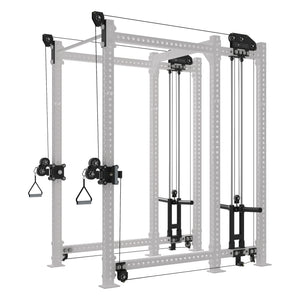

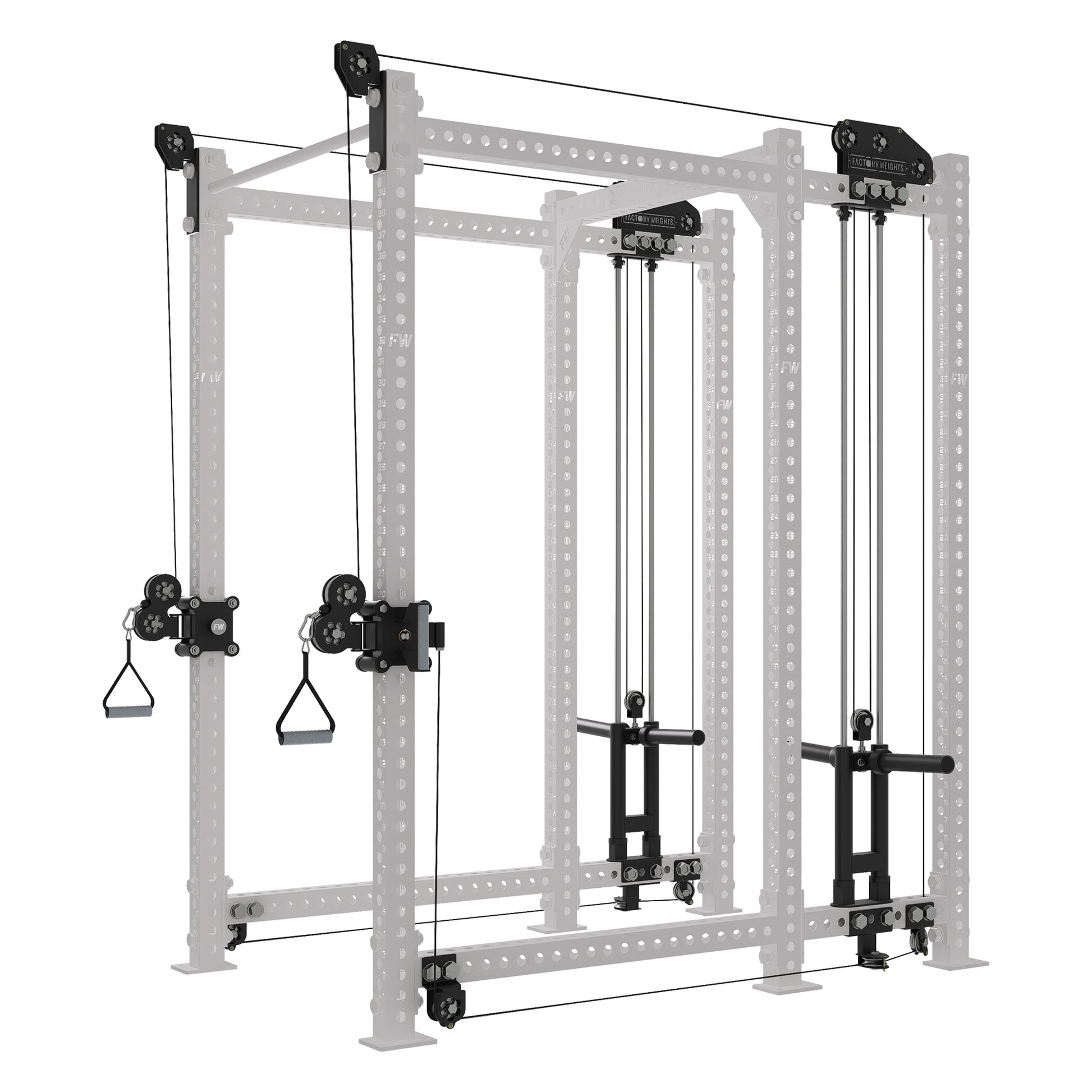

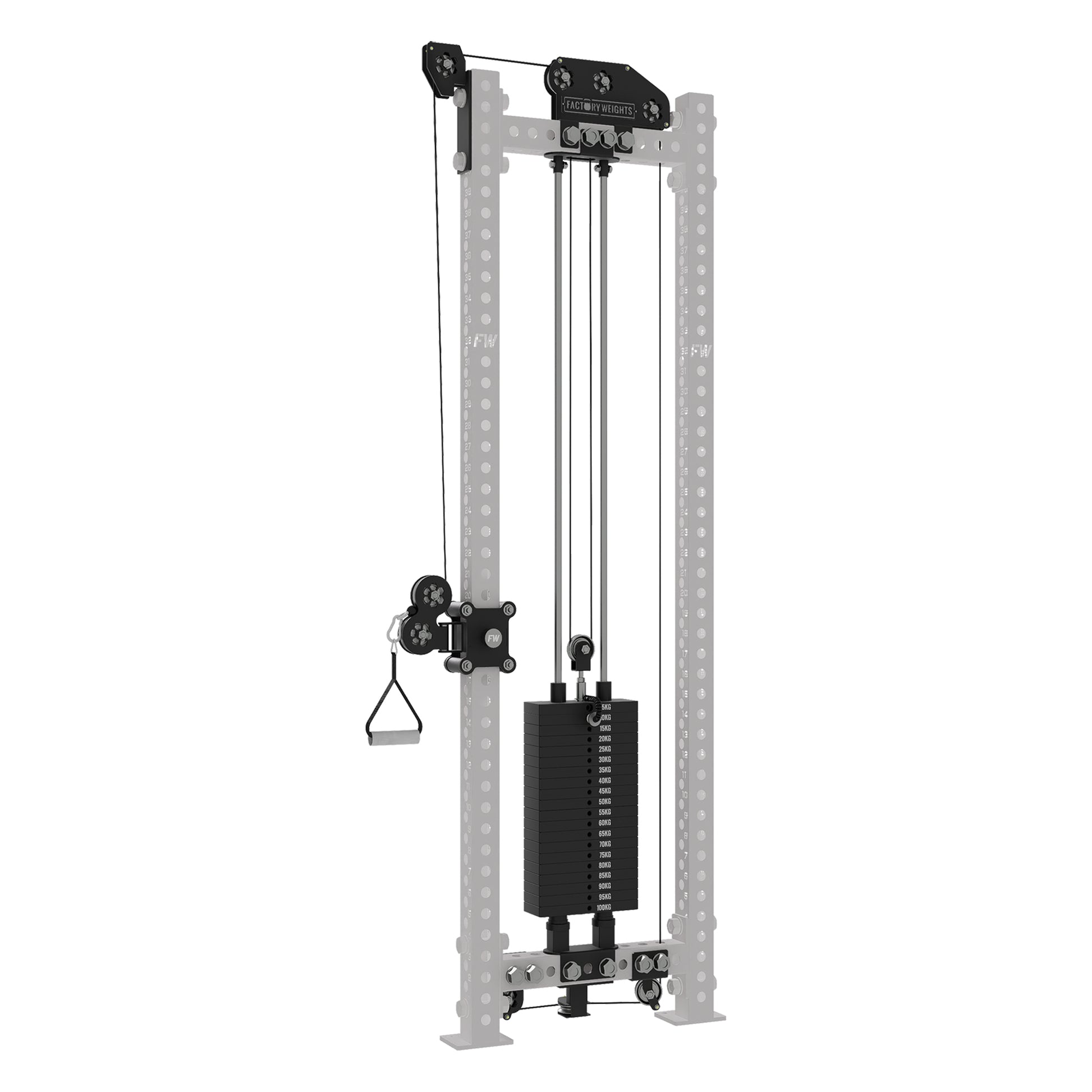

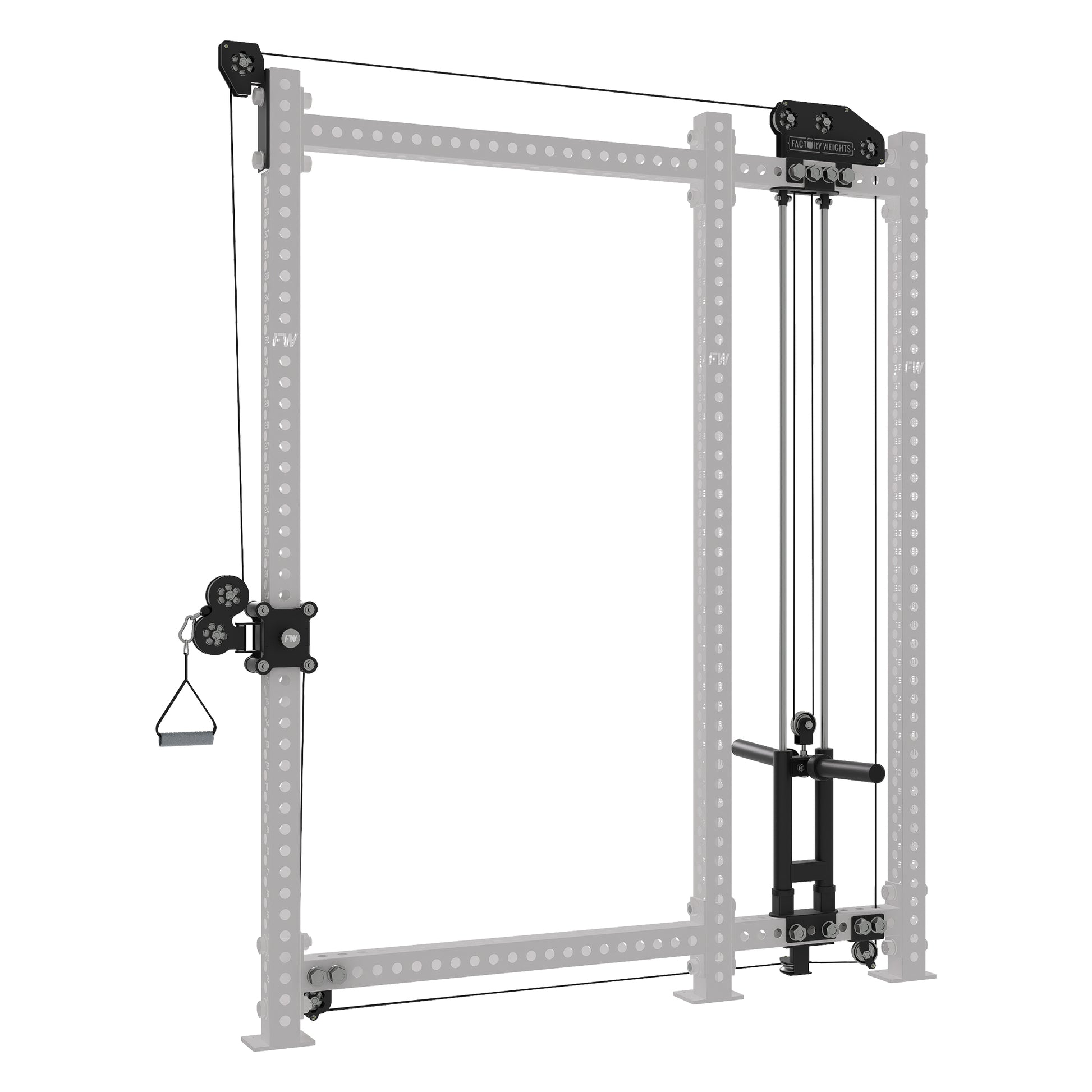

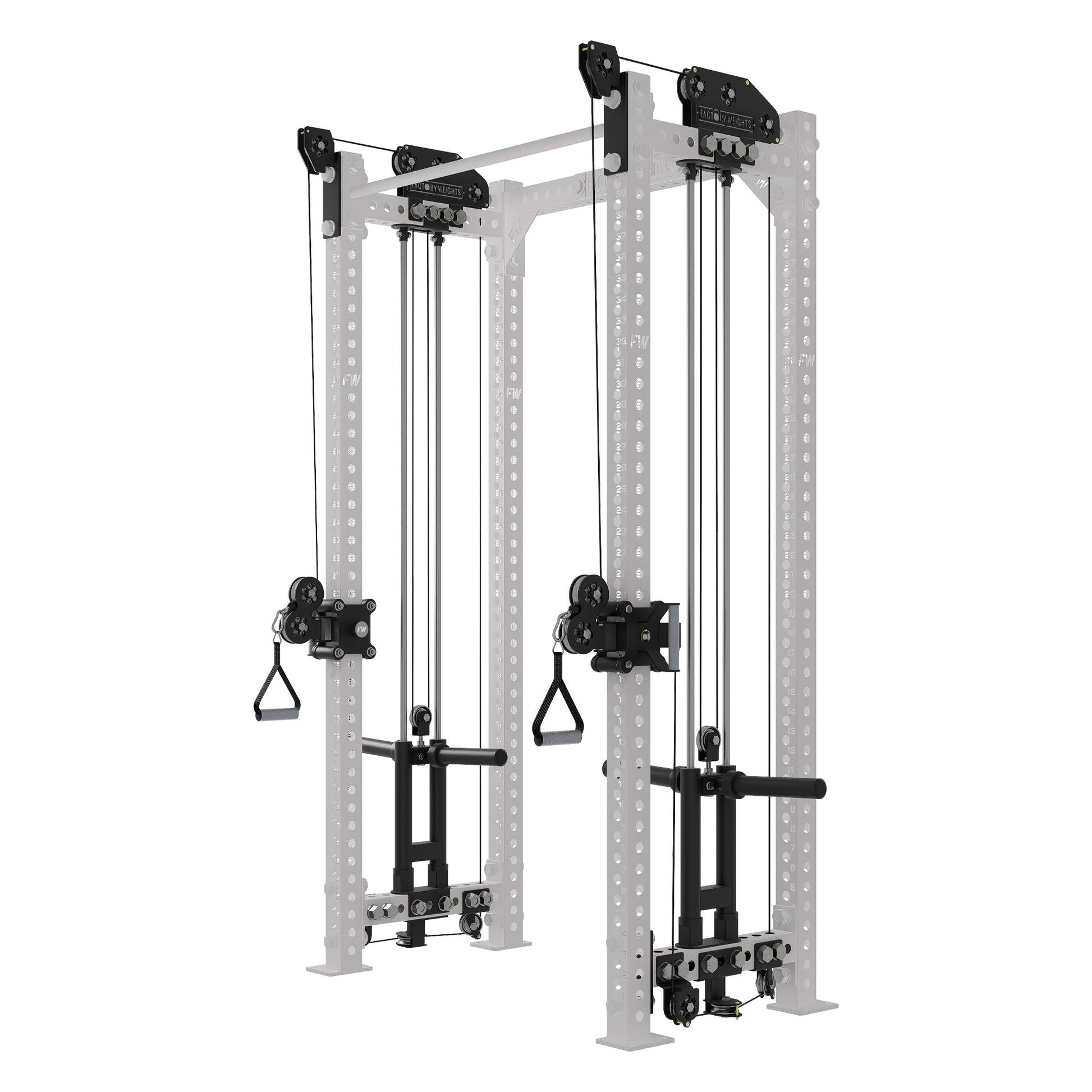

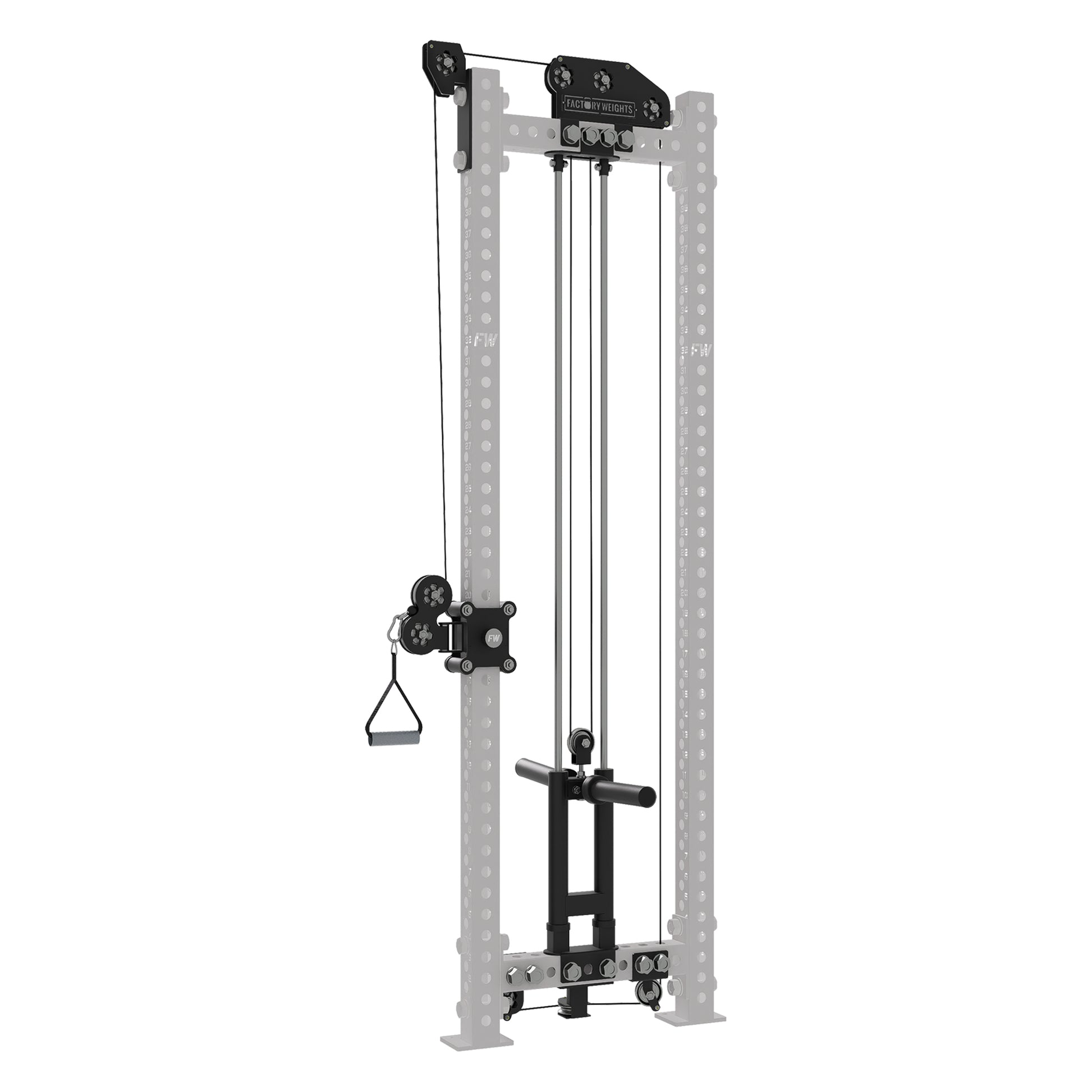

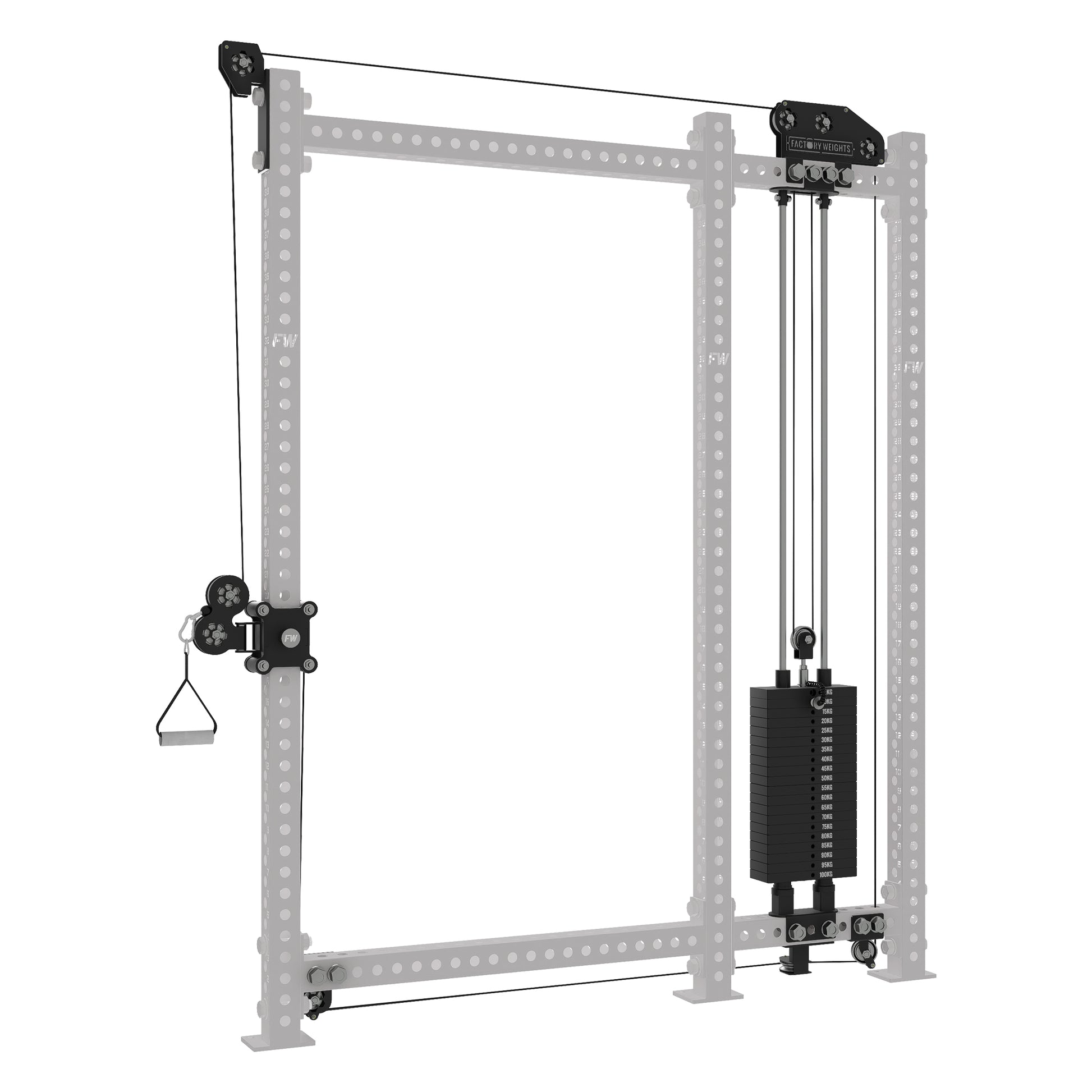

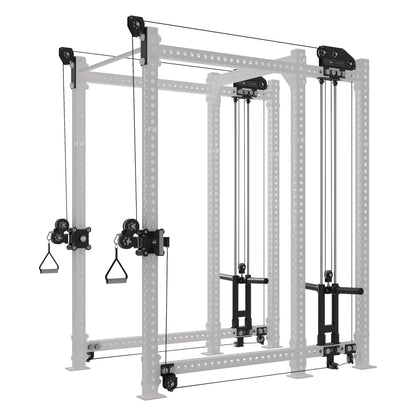

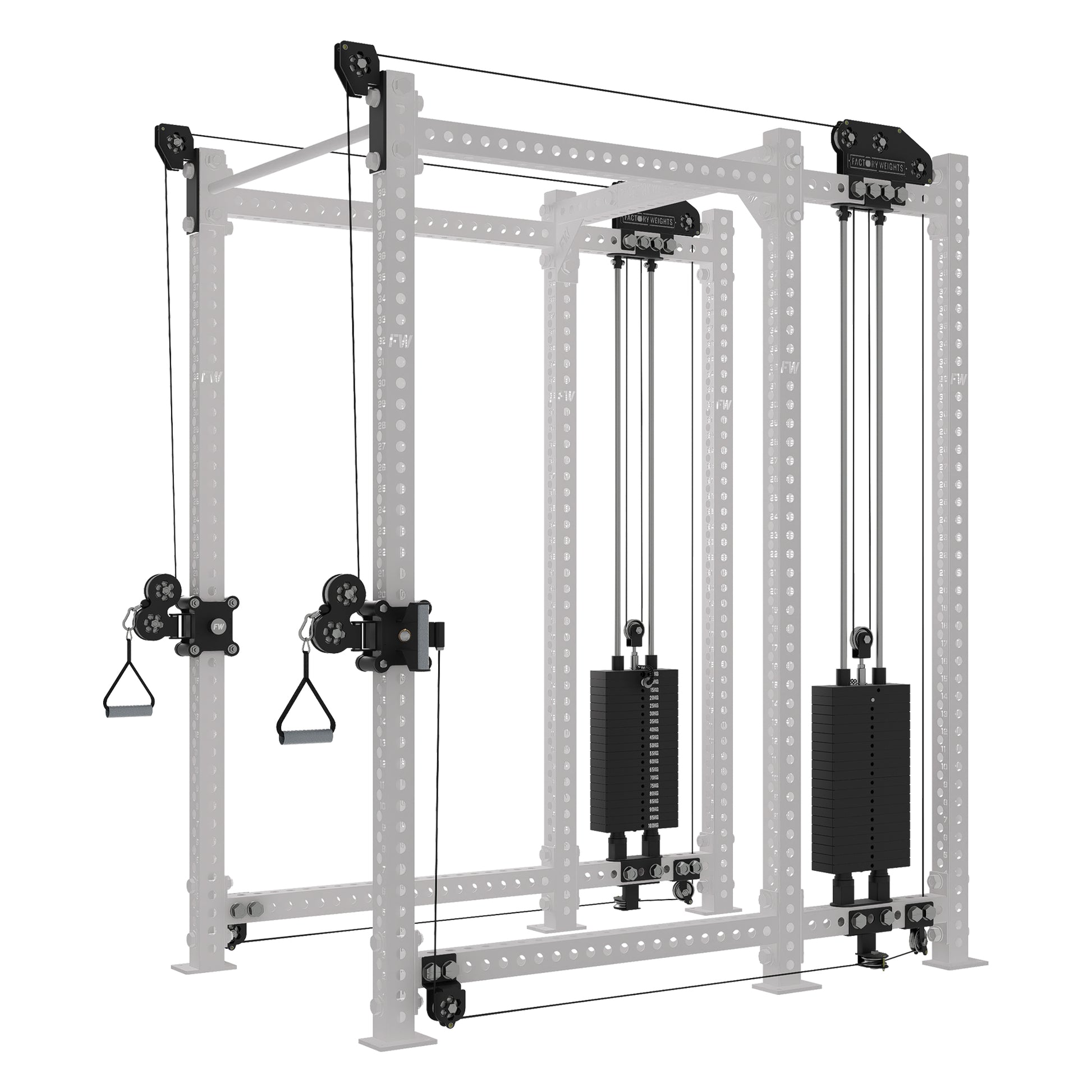

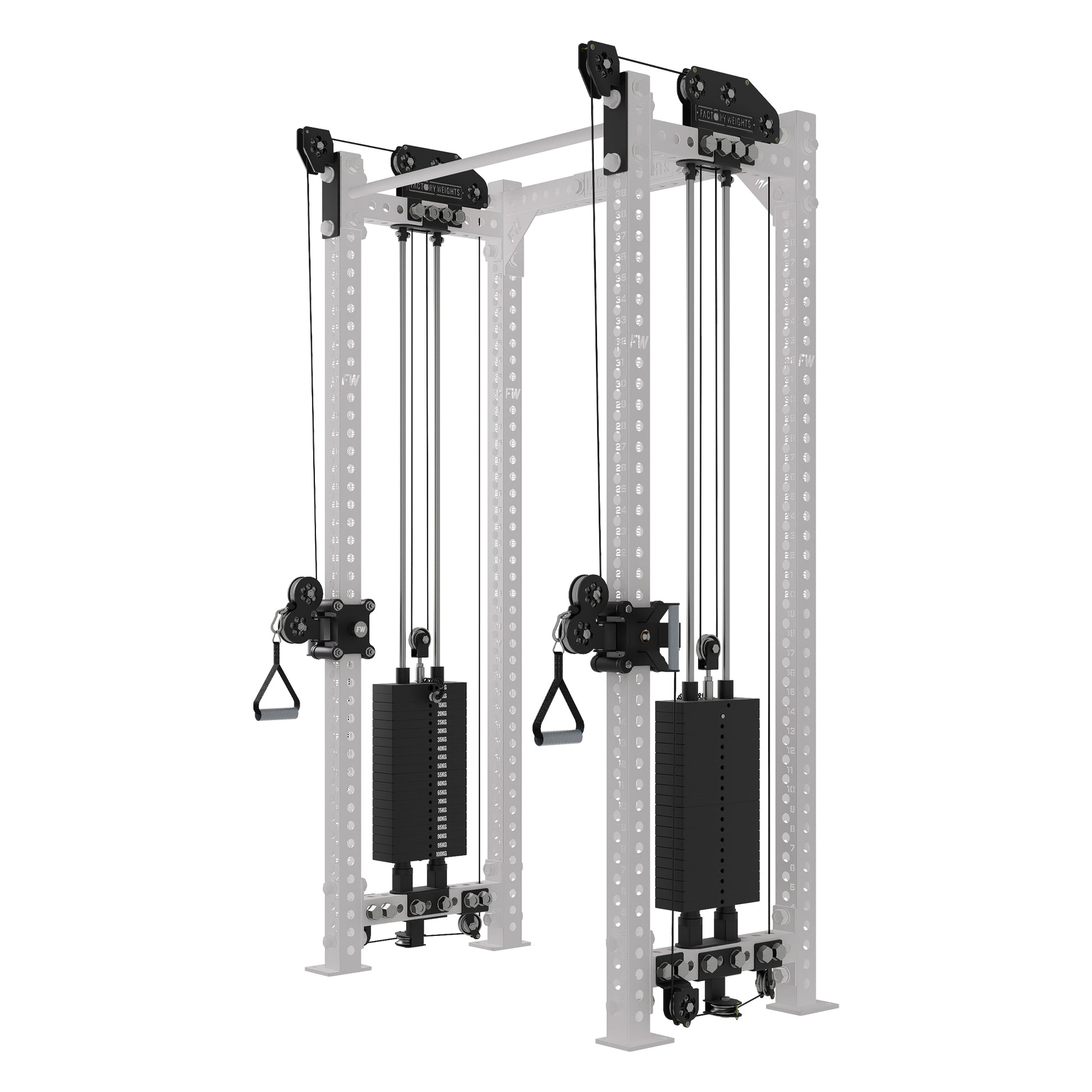

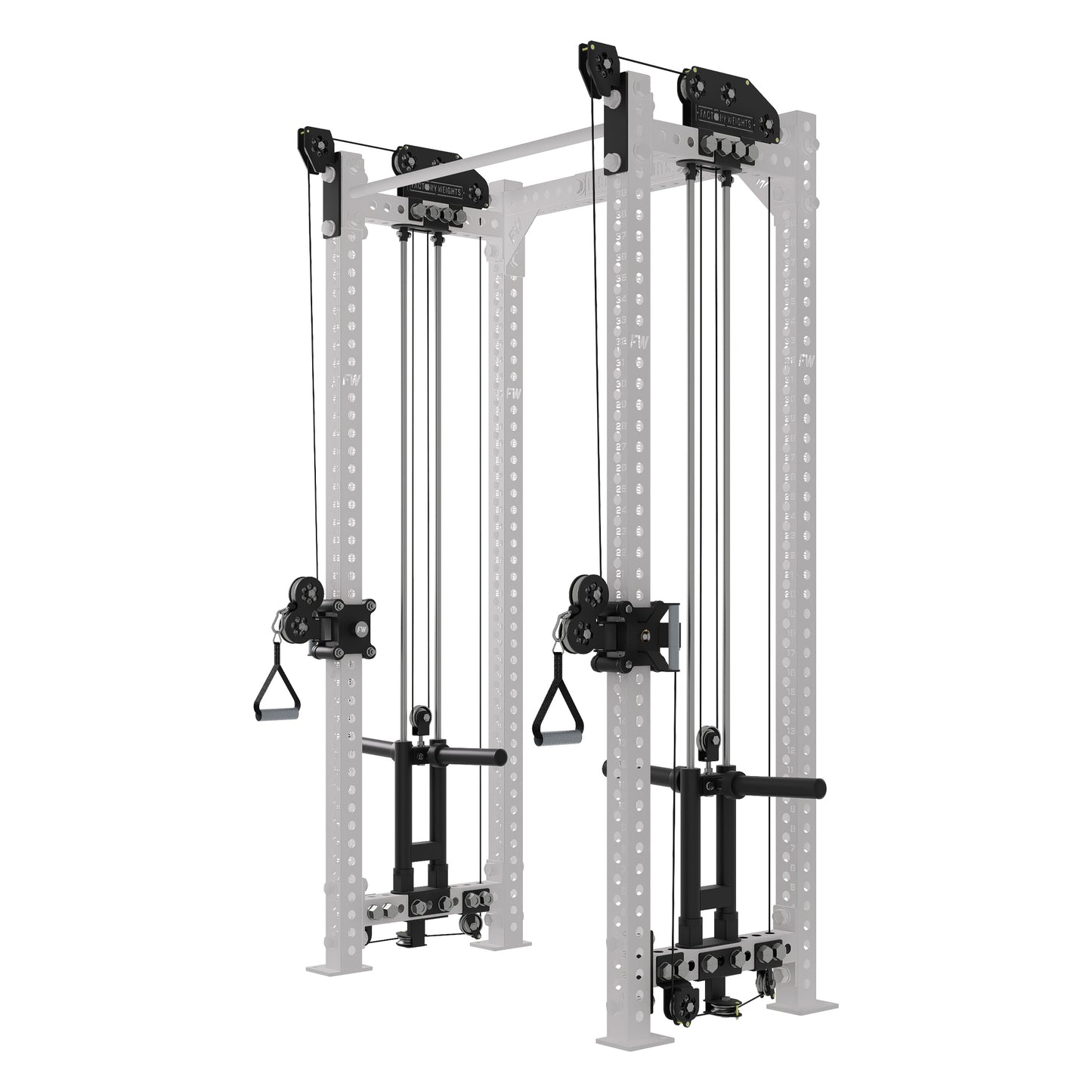

Enter the Factory Weights Pro Cable System: A rack integrated solution to a cable pulley system. Designed to turn your Factory Weights Pro Rack into a Pro Cable Pulley System! This gives the user the option to use cable exercises without having a separate stand alone unit. The System uses a 2:1 pulley ratio meaning that 20kg feels like 10kg when lifting. Choose from a 100kg Weight Stack constructed from steel plates with a 3% tolerance complete with mag loading pin for quick get secure changes. Or choose from a plate loaded design so you can add your own 2 inch weight plates to 2 x 25cm loading pins with a capacity of 250kg total.

The Pro Cable Systems design is extremely versatile so it can be attached to the left or right side of a rack. The system boasts a rack roller trolley which can easily roll up and down the uprights for quick adjustments and is secured by a FW mag pin. The cables are nylon coated galvanised steel and capable of holding up to 250kg per cable. All pulleys used in the system are aluminium for longevity and a smoother motion. The system includes a pro cable handle but can be used with a host of cable attachments

Please note:

  • The plate loaded option will not be compatible when used in conjunction with storage pins or storage shelves at the rear uprights when mounted on short junction bars.
  • This system will add 6cm of height to a rack.
  • When adding to an existing wall rack you will require an additional junction bar to sit below the system.
  • The Pro cable system is only compatible with our Pro Racking 230cm power racks, half racks and wall racks.
  • The systemrequires the minimum length of a short junction bar to be fitted to a rack.

Specification:

  • Choice of plate or pin loaded design
  • Pin loaded weight stack: 100kg in 5kg increments
  • Plate loaded trolley: 2 x 25cm loading pins
  • Plate loaded trolley weight capacity: 250kg
  • Minimum usable weight: 5kg
  • Max weight capacity per cable: 250kg
  • Mag pin adjustable trolly system
  • Aluminium pulleys
  • 2:1 weight ratio
  • Designed for Factory Weights Pro Racking

Additional dimensions when added to Factory Weights Pro Racks per Conversion Kit:



Pin Loaded

Plate Loaded

Length

+18cm

+18cm

Width

+13cm

+33cm

Height

+6cm

+6cm
