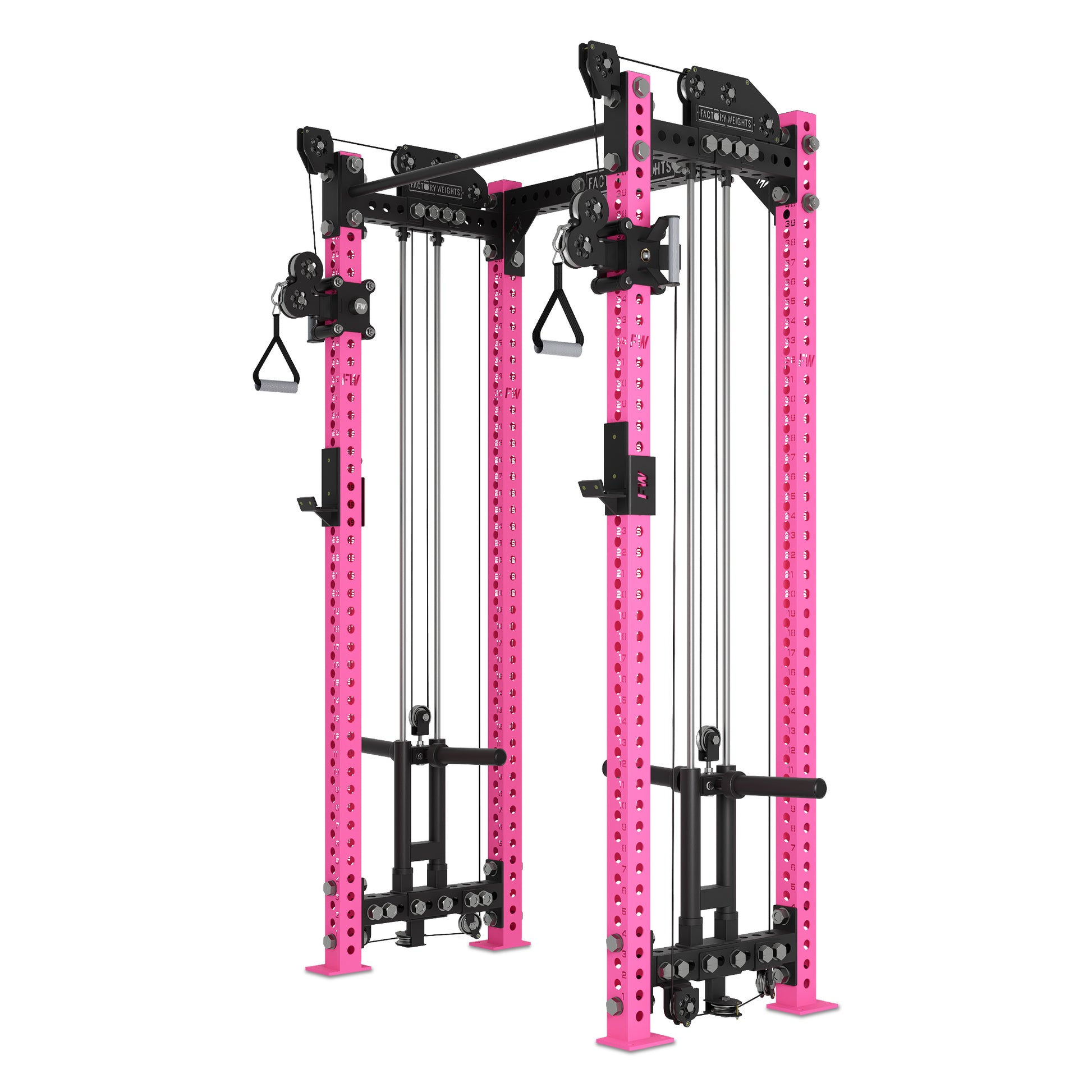

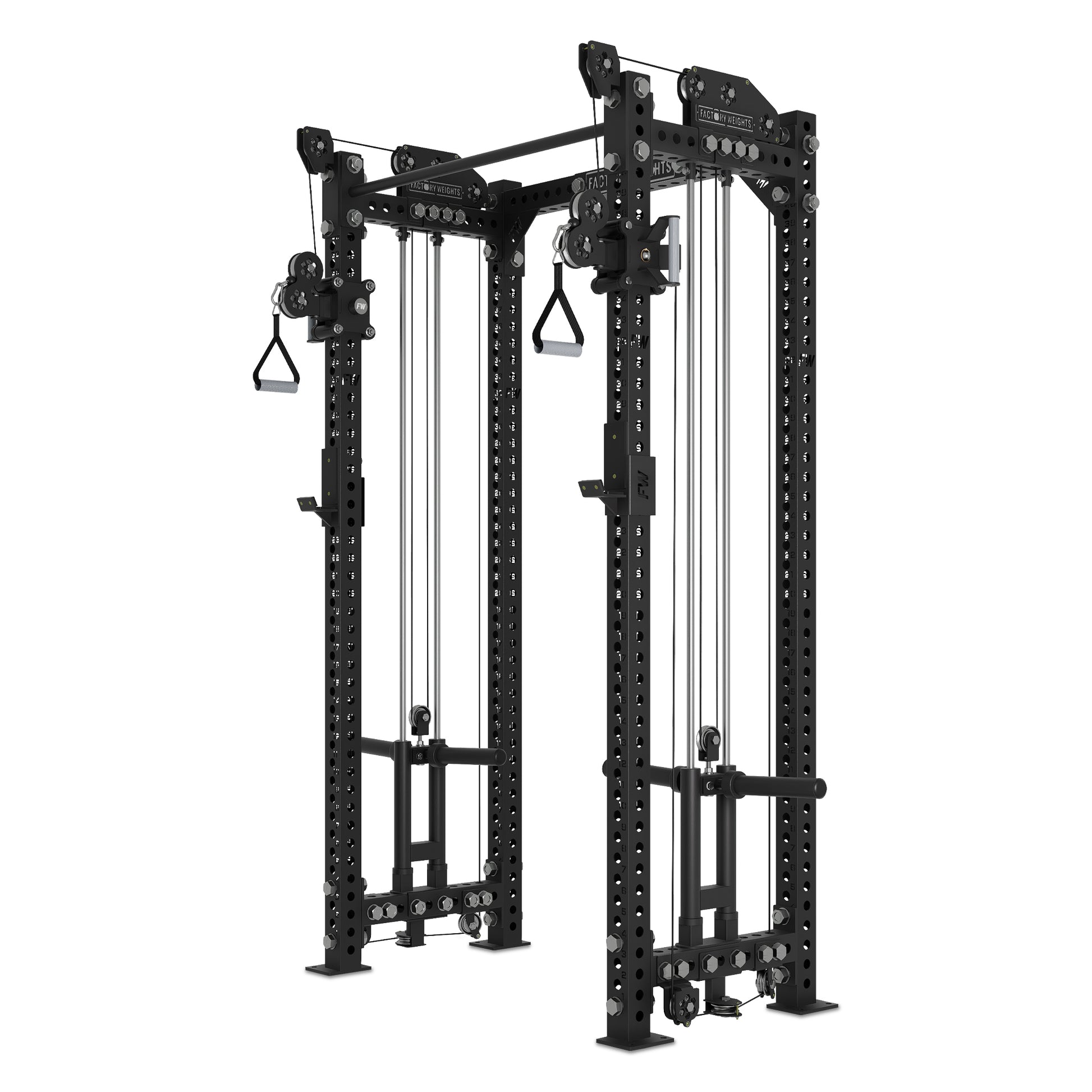

Pro Cable Half Rack

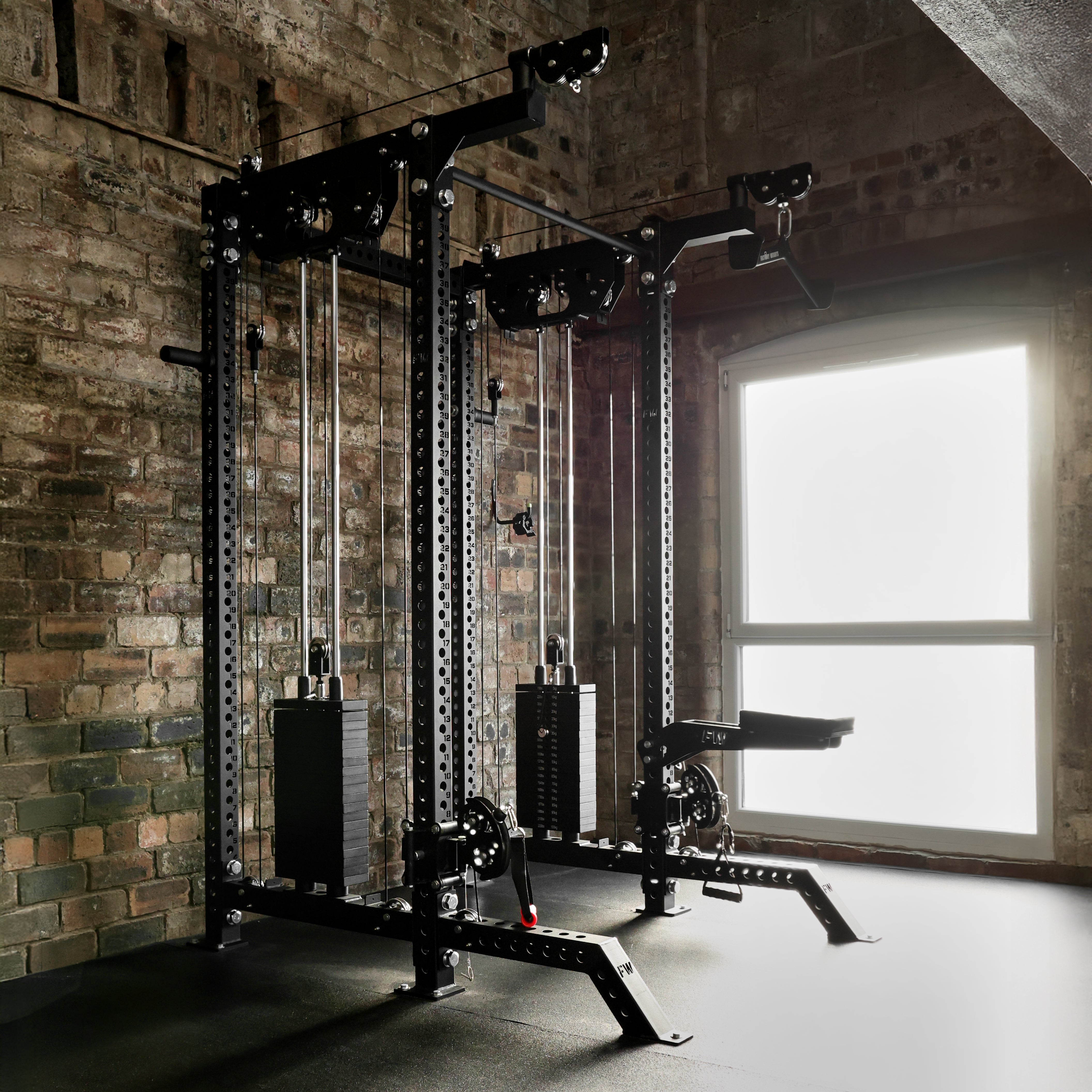

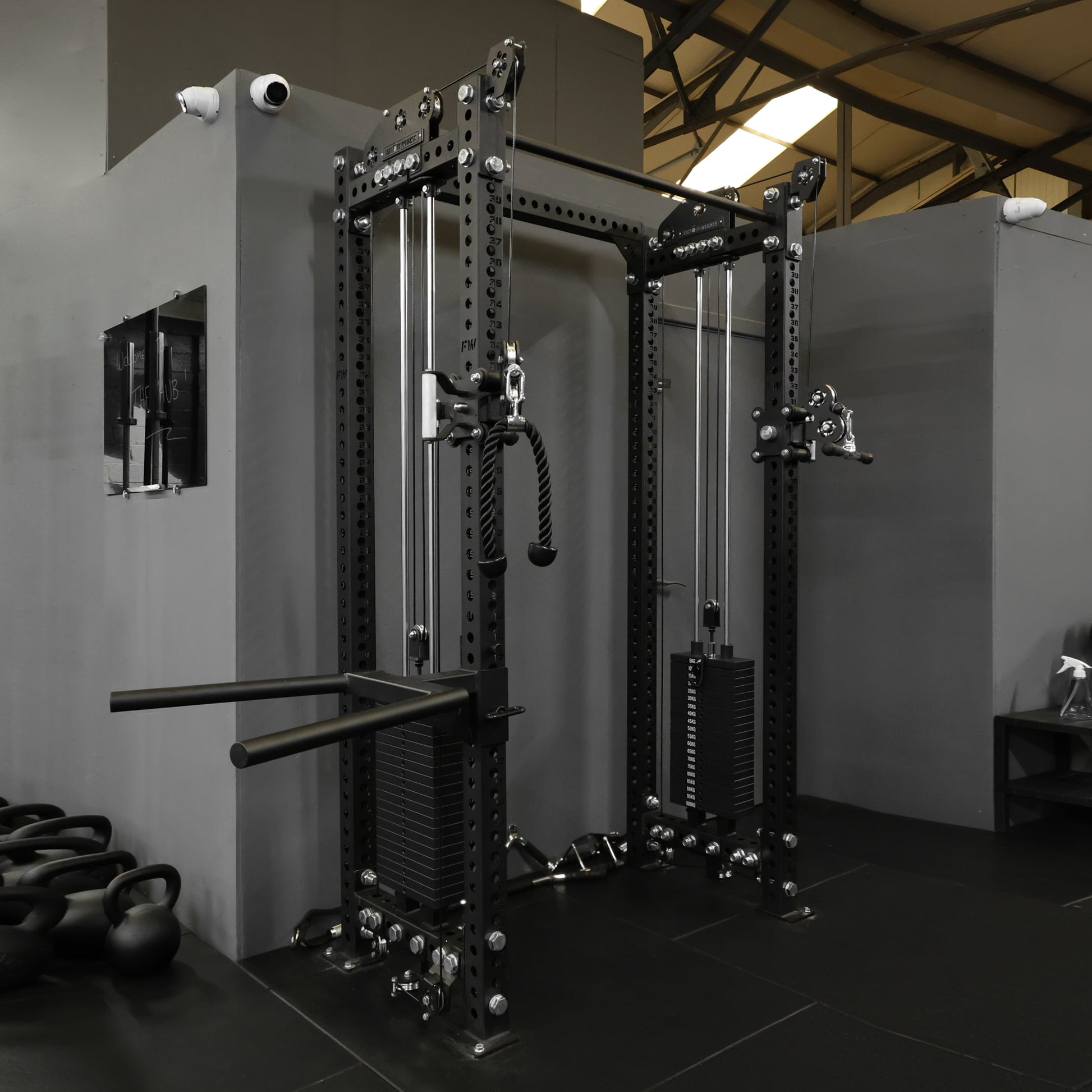

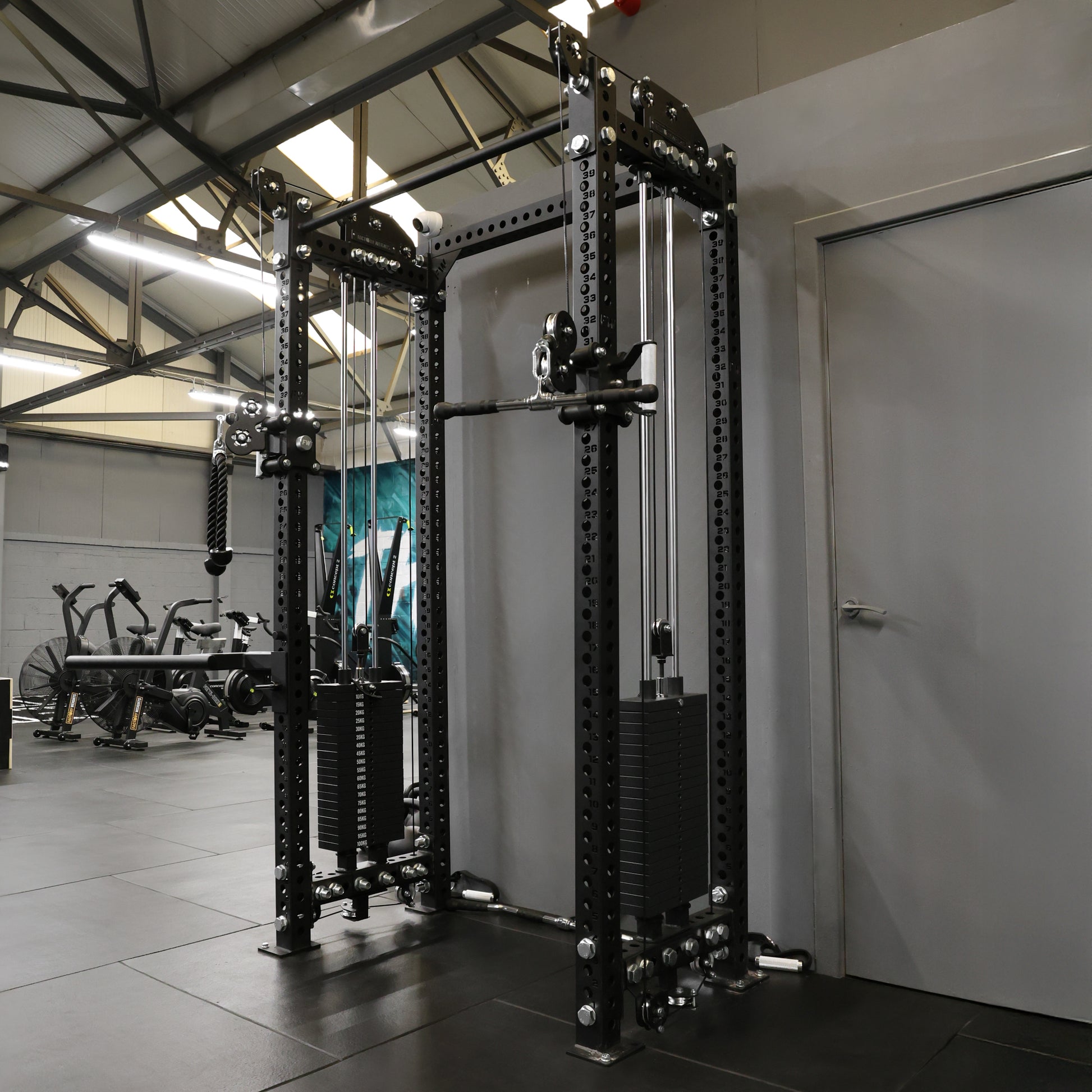

The Factory Weights Pro cable half rack is a compact solution with all the benefit of a full rack, allowing you to use the back for storage and attachments. It is compatible with a huge range of pro racking attachments. This allows you to add more storage and customise your rack to your training needs. The offset cables mean attachments like spotter arms and safety bars are not affected by the cables.

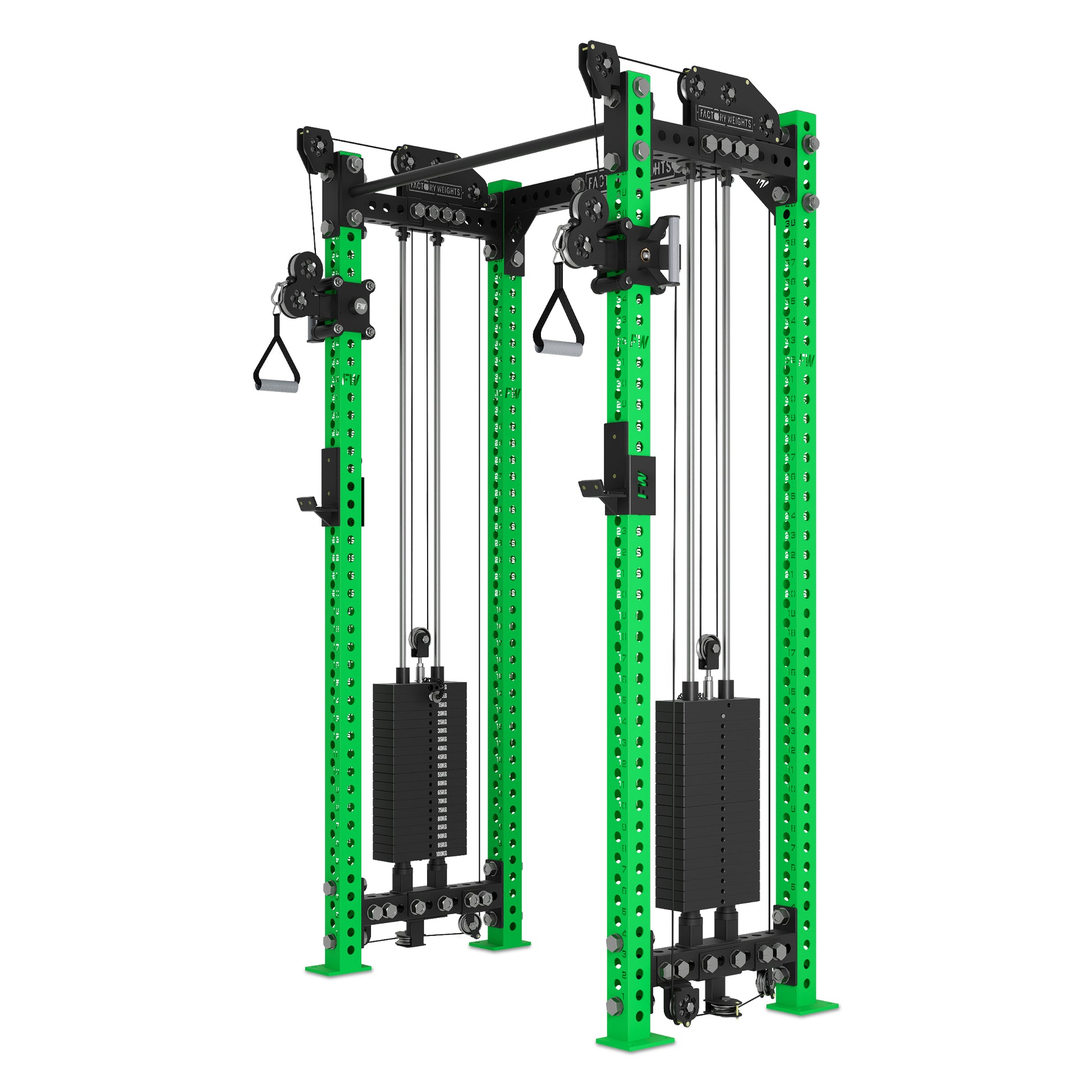

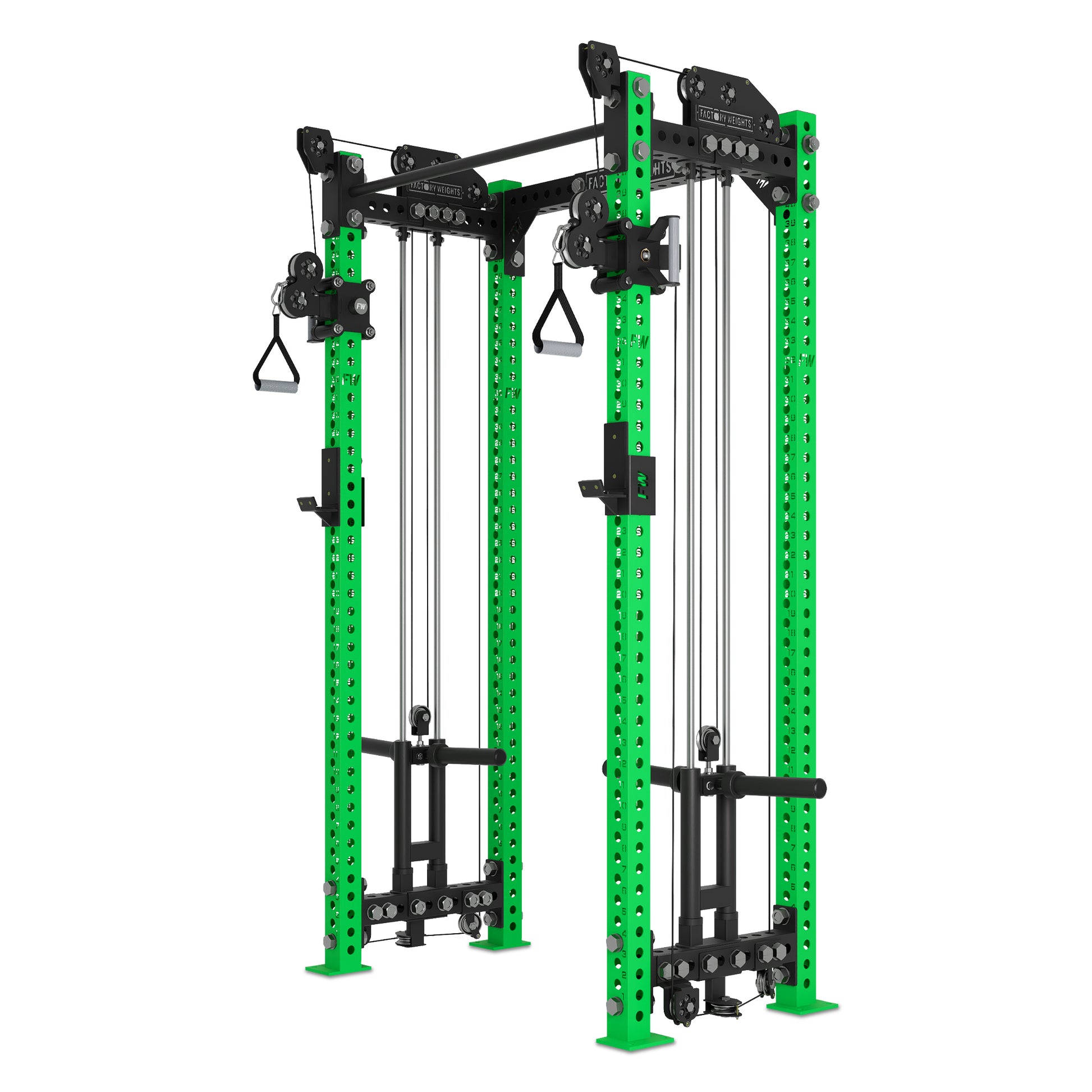

The Pro Cable System uses a 2:1 pulley ratio meaning that 20kg feels like 10kg when lifting. Choose from a 100kg Weight Stack constructed from steel plates with a 3% tolerance complete with mag loading pin for quick get secure changes. Or choose from a plate loaded design so you can add your own 2 inch weight plates to 2 x 25cm loading pins with a capacity of 250kg total.

The system boasts a rack roller trolley which can easily roll up and down the uprights for quick adjustments and is secured by a FW mag pin. The cables are nylon coated galvanised steel and capable of holding up to 250kg per cable. All pulleys used in the system are aluminium for longevity and a smoother motion. The system includes a pro cable handle but can be used with a host of cable attachments.

The Factory Weights Pro Racking System is one of the most versatile and robust racking systems in the world. It is completely modular and has near limitless configuration. If you are looking for something more custom/unique to suit your space contact our gym design team provide a free custom solution to suit your gyms needs! Get in touch here.

Please note:

• The plate loaded option will not be compatible when used in conjunction with storage pins or storage shelfs at the rear uprights.
• This rack is not compatible when used in conjunction with 108cm bumper plate storage shelves at the rear uprights when utilising short junction bars.

• 75mm x 75mm box section
• Solid 11 gauge steel 3mm thick
• 4 way offset 1 inch holes

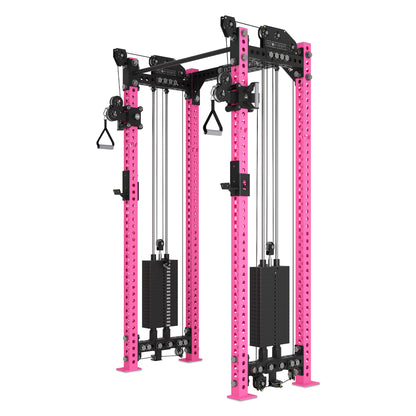

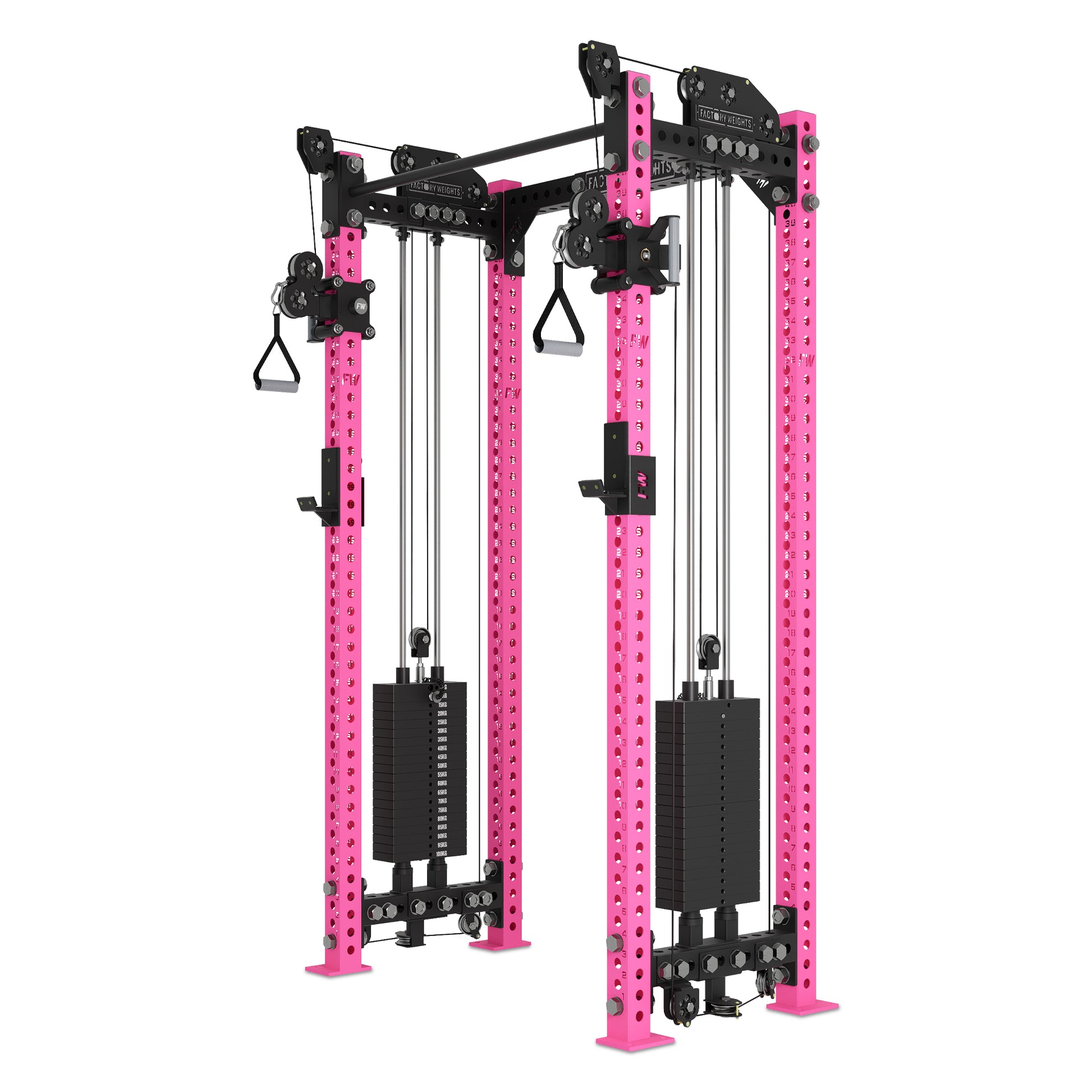

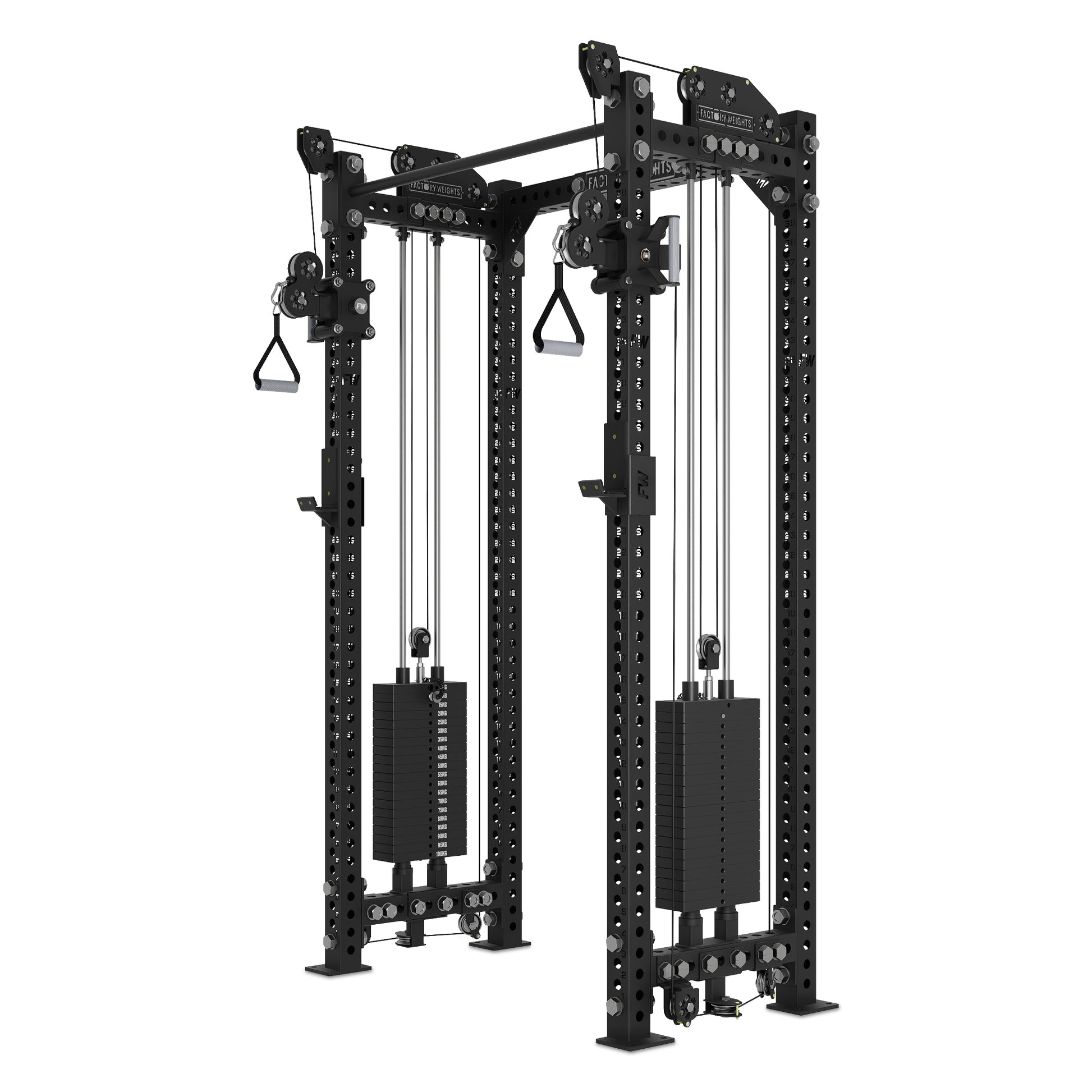

• Choice of colours
• Suitable for home or commercial gym environments
• Choice of plate or pin loaded design
• Pin loaded weight stacks: 2 x 100kg in 5kg increments
• Plate loaded trolleys: 2 x 25cm loading pins each side
• Plate loaded trolley weight capacity per side: 250kg
• Minimum usable weight per cable: 5kg
• Max weight capacity per cable: 250kg
• Mag pin adjustable trolly system
• Aluminium pulleys
• 2:1 weight ratio
